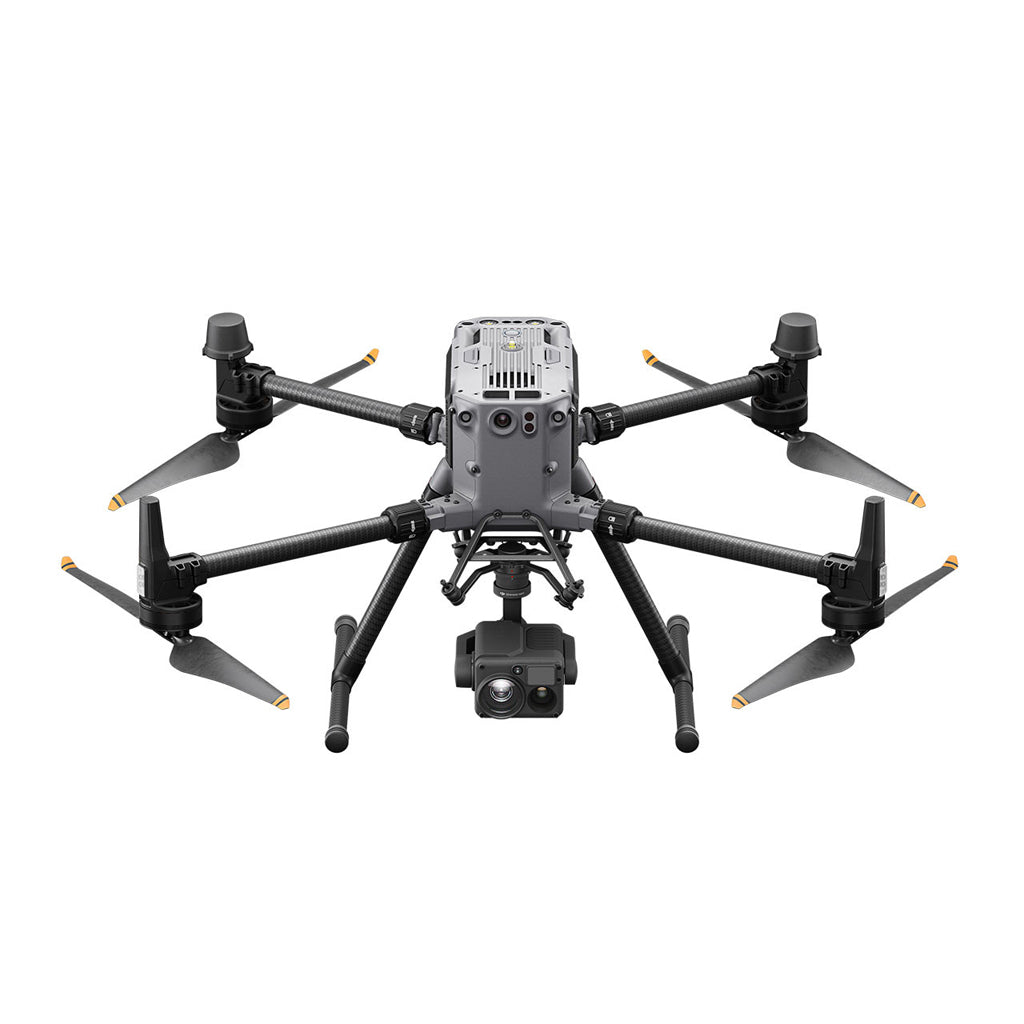

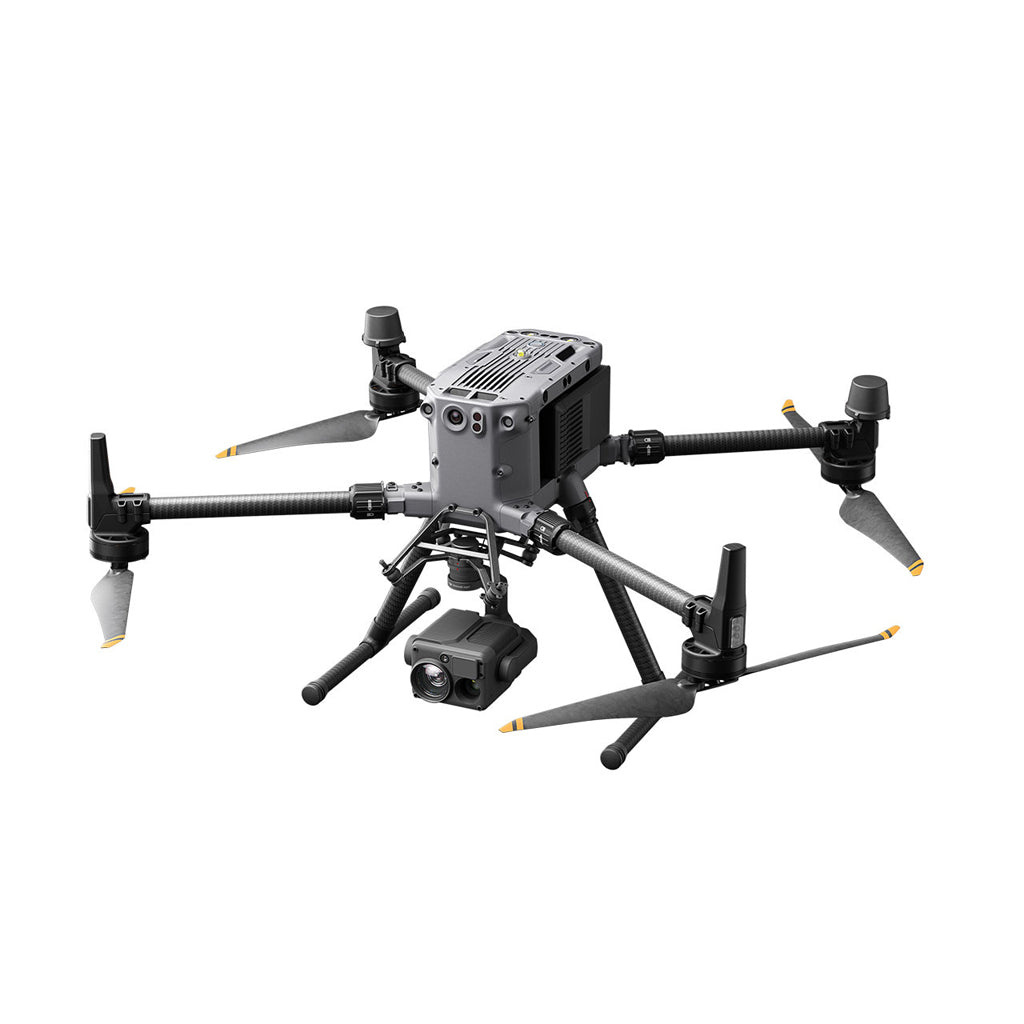

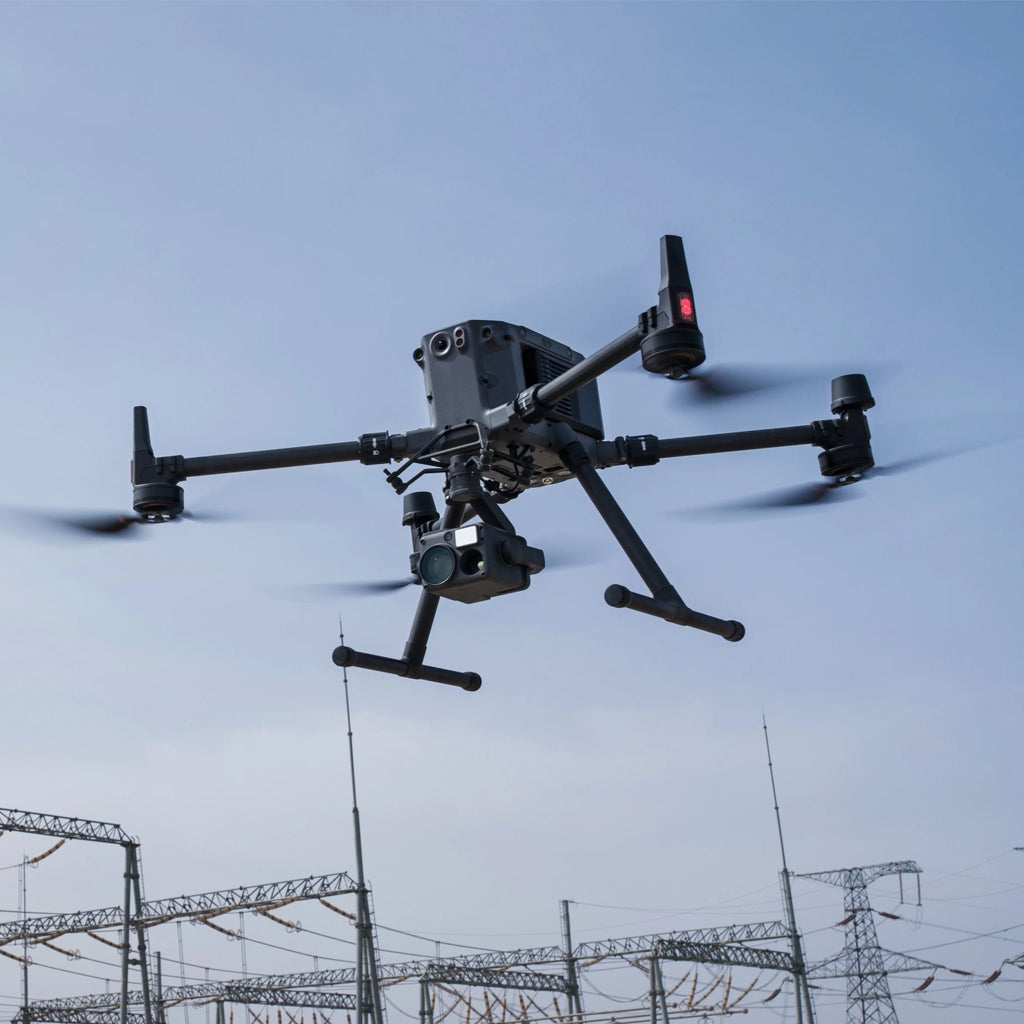

DJI Matrice 350 RTK Thermal Drone with H30 Payload

The DJI Matrice 350 RTK is a robust and feature-rich drone, perfectly designed for professional applications requiring precision and reliability. Equipped with an advanced thermal camera, the Matrice 350 RTK excels at detecting heat signatures in real-time, making it an invaluable tool for animal habitat surveying, where it can monitor wildlife activity in dense foliage, at night, or in remote areas without disturbing natural ecosystems. Its thermal imaging capabilities allow researchers and conservationists to track animals, assess habitat health, and gather critical environmental data with unparalleled efficiency.

Beyond wildlife applications, the Matrice 350 RTK is ideal for search and rescue, infrastructure inspections, and disaster response, where identifying heat sources in adverse conditions is crucial. Designed for all-weather performance, it operates seamlessly in heavy rain, low light, high winds, and extreme temperatures ranging from -20°C to 50°C, ensuring reliable operation in even the harshest environments.

The Matrice 350 RTK also incorporates state-of-the-art mapping features. Its RTK (Real-Time Kinematic) support provides centimeter-level accuracy, making it the perfect tool for land surveying, urban planning, and large-scale mapping projects. By combining precise thermal and visual imaging, the Matrice 350 RTK enables comprehensive data collection, even in complex terrains or challenging weather conditions.

For enhanced mission planning and fleet management, the drone is fully compatible with DJI FlightHub 2, DJI’s cloud-based platform. FlightHub 2 streamlines operations by enabling real-time monitoring, seamless collaboration, and efficient mission execution, making it the ideal solution for professionals managing multiple teams or drones.

With its thermal imaging, advanced mapping, and rugged design, the Matrice 350 RTK offers exceptional value for high-quality thermal aerial imagery, delivering unparalleled performance and versatility for diverse professional needs.

Features

• Zenmuse H30 Thermal Camera: High-resolution thermal imaging for precise heat detection and analysis.
• All-Weather Performance: Operates in rain, snow, and extreme temperatures from -20°C to 50°C.
• RTK Support: Provides centimeter-level precision for accurate mapping and surveying.
• 41-Minute Flight Time: Long battery life for extended outdoor missions.
• Multi-Payload Compatibility: Supports additional payloads (sold separately) for versatile operations.
• Hybrid Zoom Camera: Up to 200x zoom for detailed visual inspections from a safe distance.
• DJI FlightHub 2 Integration: Enables mission planning, fleet management, and real-time data sharing.
• Obstacle Avoidance: Omnidirectional sensors for safe navigation in challenging environments.
• Portable and Durable Design: Foldable and rugged for ease of transport and use in harsh conditions.
• Wide Application Range: Ideal for wildlife monitoring, habitat surveys, forestry, and environmental mapping.

Specification

• Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)
• Dimensions (folded): 365×215×195 mm (L×W×H)
• Diagonal Wheelbase: 668 mm
• Weight (incl. two batteries): 3770 ± 10 g
• Max Takeoff Weight: 4069 g
• Max Takeoff Weight for C2 Certification in EU: 3998 g
• Operation Frequency: 2.4000-2.4835 GHz; 5.725-5.850 GHz
• Transmitter Power (EIRP): 2.4 GHz
• Hovering Accuracy (windless or breezy): Vertical
• RTK Positioning Accuracy (fixed RTK enabled): 1 cm+1 ppm (horizontal)
• Max Angular Velocity: Pitch
• Max Pitch Angle: 35° (N-mode and Forward Vision System enabled
• Max Ascent/Descent Speed: 6 m/s, 5 m/s
• Max Tilt Descent Speed: 7 m/s
• Max Horizontal Speed: 23 m/s
• Max Service Ceiling Above Sea Level (without other payload): 5,000 m (with 1671 propellers)
• Max Wind Resistance: 12 m/s
• Max Hover Time: 36 min
• Max Flight Time: 41 min
• Motor Model: 3511
• Propeller Model: 1671
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Class: C2 (EU)
• Angular Vibration Range: ±0.01°
• Controllable Range: Pan
• Tilt: -120° to +45°
• Pan: ±105°
• Roll: ±45°
• Zoom Camera Sensor: 1/2" CMOS, Effective pixels
• Zoom Camera Lens: Focal length
• Zoom Camera Aperture: f/2.8-f/4.2
• Zoom Camera Focus: 5 m to ∞
• Zoom Camera Exposure Compensation: ±3 ev (using 1/3 ev as step length)
• Zoom Camera Electronic Shutter Speed (Auto Mode): Photo
• Zoom Camera ISO Range: 100-25600
• Zoom Camera Max. Video Resolution: 3840×2160
• Zoom Camera Max Photo Size: 8000×6000
• Wide Camera Sensor: 1/2" CMOS, Effective pixels
• Wide Camera Lens: DFOV
• Wide Camera Lens Focal length: 4.5 mm (equivalent
• Wide Camera Lens Aperture: f/2.8
• Wide Camera Lens Focus: 1 m to ∞
• Wide Camera Lens Exposure Compensation: ±3 ev (using 1/3 ev as step length)
• Wide Camera Electronic Shutter Speed (Auto Mode): Photo
• Wide Camera Electronic Shutter Speed (Manual Mode): Photo
• Wide Camera Video: 1/8000-1/30 s
• Wide Camera ISO Range: 100-25600
• Wide Camera Max. Video Resolution: 3840×2160
• Wide Camera Photo Size: 4000×3000
• Thermal Camera: Uncooled VOx Microbolometer
• Thermal Lens: DFOV
• Thermal Focal length: 9.1 mm (equivalent
• Thermal Aperture: f/1.0
• Thermal Focus: 5 m to ∞
• Noise Equivalent Temperature Difference (NETD): ≤50 mK@F1.0
• Infrared Temperature Measurement Accuracy: ±2°C or ±2% (using the larger value)
• Thermal Video Resolution (Infrared Image Super-resolution Mode): 1280×1024
• Thermal Video Resolution (Normal Mode): 640×512
• Photo Size (Infrared Image Super-resolution Mode): 1280×1024
• Photo Siz (Normal Mode): 640×512
• Pixel Pitch: 12 um
• Temperature Measurement Method: Spot Meter, Area Measurement
• Temperature Measurement Range: High Gain Mode
• Low Gain Mode: 0° to 500° C (32° to 932° F)
• Palette: White Hot/Black Hot/Tint/Iron Red/Hot
• Laser Module Wavelength: 905 nm
• Max Laser Power: 3.5 mW
• Single Pulse Width: 6 ns
• Measurement Accuracy: ± (0.2 m + D×0.15%)
• Measuring Range: 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
• Safety Regulation Level: Class 1M
• Accessible Emission Limit (AEL): 304.8 nJ
• Reference Aperture: 18mm length, 18mm width (20.3mm diameter if equivalent to circular)
• Max Laser Pulse Emission Power Within 5 Nanoseconds: 60.96 W
• Dimensions (unfolded, without propellers): 810×670×430 mm (L×W×H)
• Dimensions (folded, with propellers): 430×420×430 mm (L×W×H)
• Diagonal Wheelbase: 895 mm
• Weight (with single downward gimbal) Without batteries: Approx. 3.77 kg
• Single Gimbal Damper’s Max Payload: 960 g
• Max Takeoff Weight: 9.2 kg
• Operating Frequency: 2.4000-2.4835 GHz
• Transmitter Power (EIRP): < 33 dBm (FCC)
• Hovering Accuracy Vertical (with moderate or no wind): ±0.1 m (with vision positioning)
• Hovering Accuracy Horizontal (with moderate or no wind): ±0.3 m (with vision positioning)
• RTK Positioning Accuracy (RTK FIX): 1 cm + 1 ppm (horizontal)
• Max Angular Velocity: Pitch
• Max Pitch Angle: 30° (When in N mode and with the forward vision system enabled: 25°)
• Max Ascent Speed: 6 m/s
• Max Descent Speed (vertical): 5 m/s
• Max Tilted Descent Speed: 7 m/s
• Max Horizontal Speed: 23 m/s
• Max Flight Altitude: 5000 m (When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg)
• Max Wind Speed Resistance: 12 m/s
• Max Flight Time: 55 minutes
• Supported DJI Gimbals: Zenmuse H30, Zenmuse H30T, Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse L2, Zenmuse L1, and Zenmuse P1
• Third-Party Payload: Supports only certified payloads developed based on DJI Payload SDK.
• Supported Gimbal Configurations: Single downward gimbal
• Ingress Protection Rating: IP55 (The IP rating is not permanently effective and may decrease due to product wear and tear)
• Global Navigation Satellite System: GPS + GLONASS + BeiDou + Galileo
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Class: C3 (EU)
• Remote Controller Screen: 7.02-inch LCD touchscreen; resolution
• Remote Controller Screen Weight: Approx. 1.25 kg (without WB37 battery)
• Remote Controller Global Navigation Satellite System: GPS + Galileo + BeiDou
• Remote Controller Built-in Battery: Type
• Remote Controller External Battery (WB37 Intelligent Battery): Capacity
• Ingress Protection Rating: IP54
• RC Operating Time: Built-in Battery (approx. 3.3 hours)
• RC Operating Temperature: -20° to 50° C (-4° to 122° F)
• RC Operating Frequency: 2.4000-2.4835 GHz
• RC Transmitter Power (EIRP): 2.4000-2.4835 GHz
• RC Wi-Fi Protocol: Wi-Fi 6
• RC Wi-Fi Operating Frequency: 2.4000-2.4835 GHz
• RC Bluetooth Protocol: Bluetooth 5.1
• RC Bluetooth Operating Frequency: 2.4000-2.4835 GHz
• Video Transmission System: DJI O3 Enterprise Transmission
• Antenna: 4 video transmission antennas, 2T4R
• Max Transmission Distance (unobstructed, free of interference): 20 km (FCC)
• Max Transmission Distance (with interference): Low Interference and Obstructed by Buildings (approx. 0-0.5 km)
• Vision System Obstacle Sensing Range: Forward/Backward/Left/Right
• Vision System FOV: Forward/Backward/Downward
• Vision System Operating Environment: Surfaces with discernible patterns and adequate lighting (lux > 15)
• Infrared Sensing System - Obstacle Sensing Range: 0.1-8 m
• Infrared Sensing System - FOV: 30° (±15°)
• Infrared Sensing System - Operating Environment: Large, diffuse, and reflective obstacles (reflectivity > 10%)
• LED Auxiliary Light - Effective Illumination Distance: 5 m
• LED Auxiliary Light - Illumination Type: 60 Hz, solid glow
• FPV Camera Resolution: 1080p
• FPV Camera FOV: 142°
• FPV Camera Frame Rate: 30fps
• Zenmuse H30T Camera Dimensions: 170×145×165 mm (L×W×H)
• H30T Weight: 920±5 g
• H30T ower: 28 W
• H30T Ingress Protection Rating: IP54
• H30T Operating Temperature: -20° to 50° C (-4° to 122° F)
• H30T Storage Temperature: -20° to 60° C (-4° to 140° F)
• H30T Gimbal Stabilization System: 3-axis (tilt, roll, pan)
• H30T Gimbal Angular Vibration Range: Hover
• H30T Gimbal Mounting: Detachable DJI SKYPORT
• H30T Gimbal Mechanical Range: Tilt
• H30T Gimbal Controllable Range: Tilt
• H30T Gimbal Operation Mode: Follow/Free/Re-center
• Zoom Camera Sensor: 1/1.8-inch CMOS, Effective Pixels
• Zoom Camera Lens: Actual Focal Length
• Zoom Camera Focus Mode: MF, AFC, AFS
• Zoom Camera Exposure Mode: Manual, Auto
• Zoom Camera Exposure Compensation: ±3.0 (1/3 increments)
• Zoom Camera Metering Mode: Spot Metering, Average Metering
• Zoom Camera AE Lock: Supported
• Zoom Camera Electronic Shutter Speed: 1/8000-2 s
• Zoom Camera ISO Range: Single Shot
• Single Shot 3840×2160@30fps, 1920×1080@30fps: Night Scene 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
• Zoom Camera Max Photo Size: 7328×5496, 3664×2748
• Wide-Angle Camera Sensor: 1/1.3-inch CMOS, Effective Pixels
• Wide-Angle Camera Sensor Lens: Actual Focal Length
• Wide-Angle Camera Focus Mode: MF, AFC, AFS
• Wide-Angle Camera Exposure Mode: Manual, Auto
• Wide-Angle Camera Exposure Compensation: ±3.0 (1/3 increments)
• Wide-Angle Camera Metering Mode: Spot Metering, Average Metering
• Wide-Angle Camera Electronic Shutter Speed: 1/8000-2 s
• Wide-Angle Camera ISO Range: Single Shot
• Wide-Angle Camera Video Resolution: Single Shot
• Wide-Angle Camera Max Photo Size: 8064×6048, 4032×3024
• Infrared Thermal Camera (H30T): Uncooled VOx Microbolometer
• H30T Lens: Focal Length
• H30T Digital Zoom Equivalent: 32×
• H30T Video Resolution: 1280×1024@30fps
• H30T Photo Resolution: 1280×1024
• H30T Photo Format: R-JPEG
• H30T Pixel Pitch: 12 μm
• H30T Spectral Band: 8-14 μm
• H30T Noise Equivalent Temperature Difference (NETD): ≤ 50 mk@f/1.0
• H30T Temperature Measurement Method: Spot Measurement, Area Measurement, Center Point Temperature Measurement
• H30T Temperature Measurement Range: High Gain
• H30T Temperature Alert: Supported
• H30T Sun Burn Protection: Supported
• H30T FFC: Auto, Manual
• H30T Palette: White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron
• LRF Wavelength: 905 nm
• LRF Measurement Range: 3-3000 m
• LRF Measurement Accuracy: ≤ 500 m
• LRF Laser Spot Size: @100 m
• LRF Safety Regulation Level: Class 1
• LRF Accessible Emission Limit (AEL): 260 nJ
• LRF Reference Aperture: 18 mm
• Max Laser Pulse Emission Power Within 5 Nanoseconds: 52 W
• NIR Auxiliary Light Wavelength: 850 nm
• NIR FOV: 4.6±0.6° (Round)
• NIR Safety Regulation Level: Class 1
• NIR Illumination Range: @100 m
• Hybrid Optical Zoom: 34×
• Max Zoom: 400×
• Supported microSD Cards: U3/Class10/V30 or above is required, or use a memory card from the recommended list.
• Supported File System: exFAT
• Recommended microSD Cards: Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC

Warranty

Please visit DJI Enterprise Warranty for warranty information on the DJI Matrice 350 RTK Thermal Drone.
