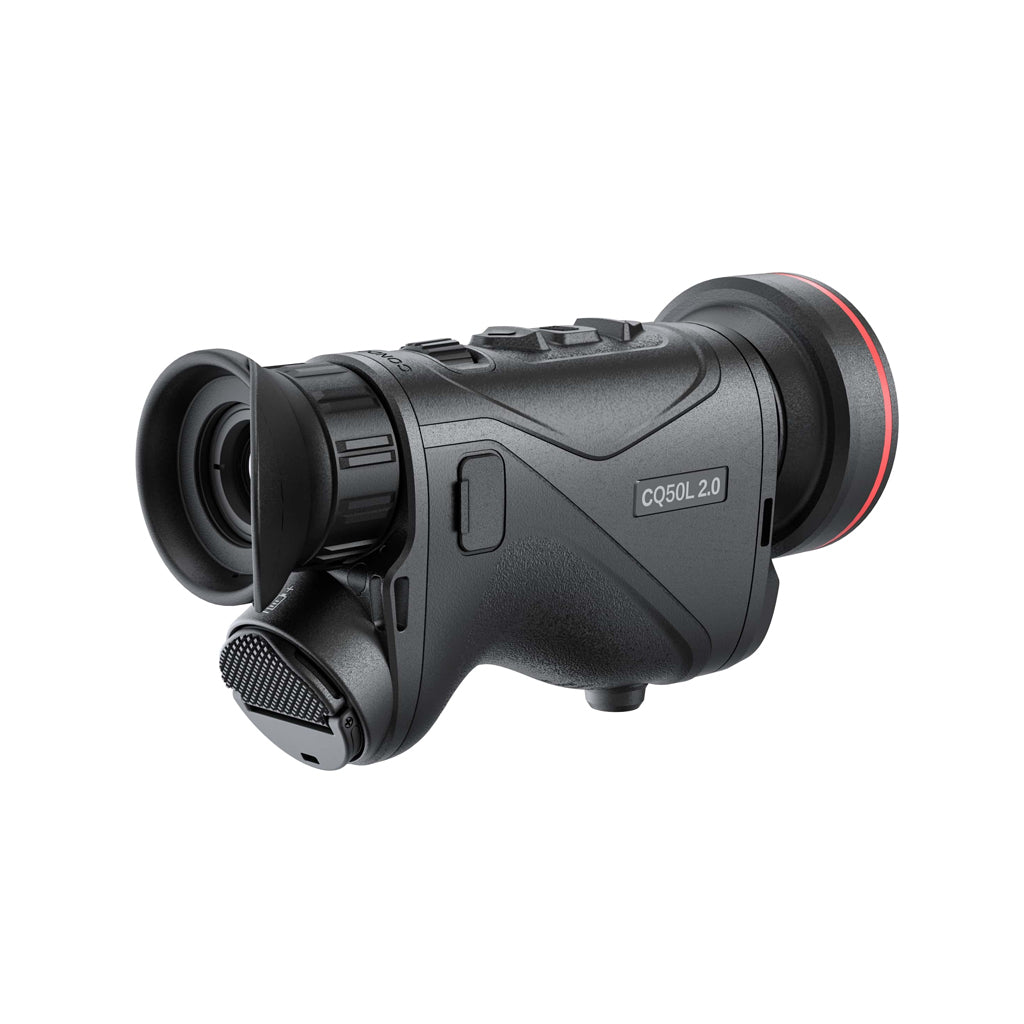

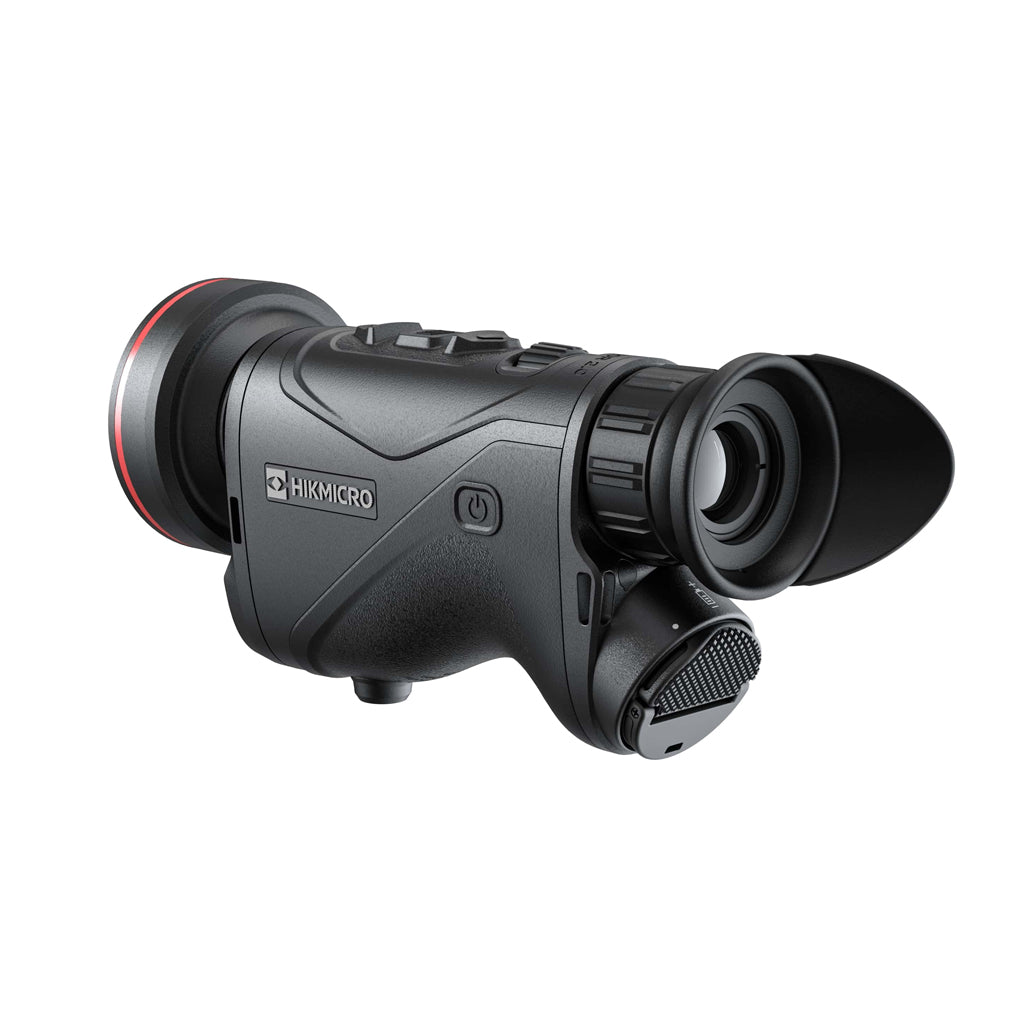

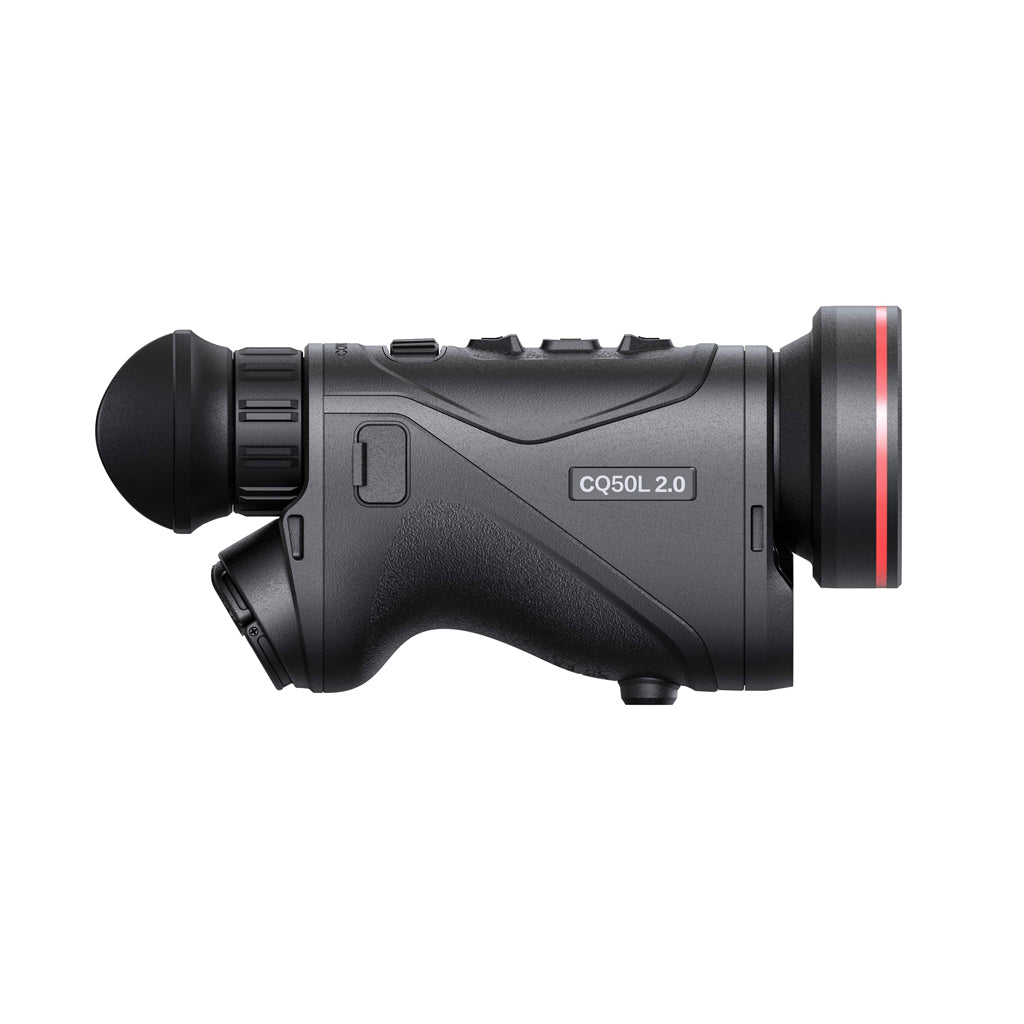

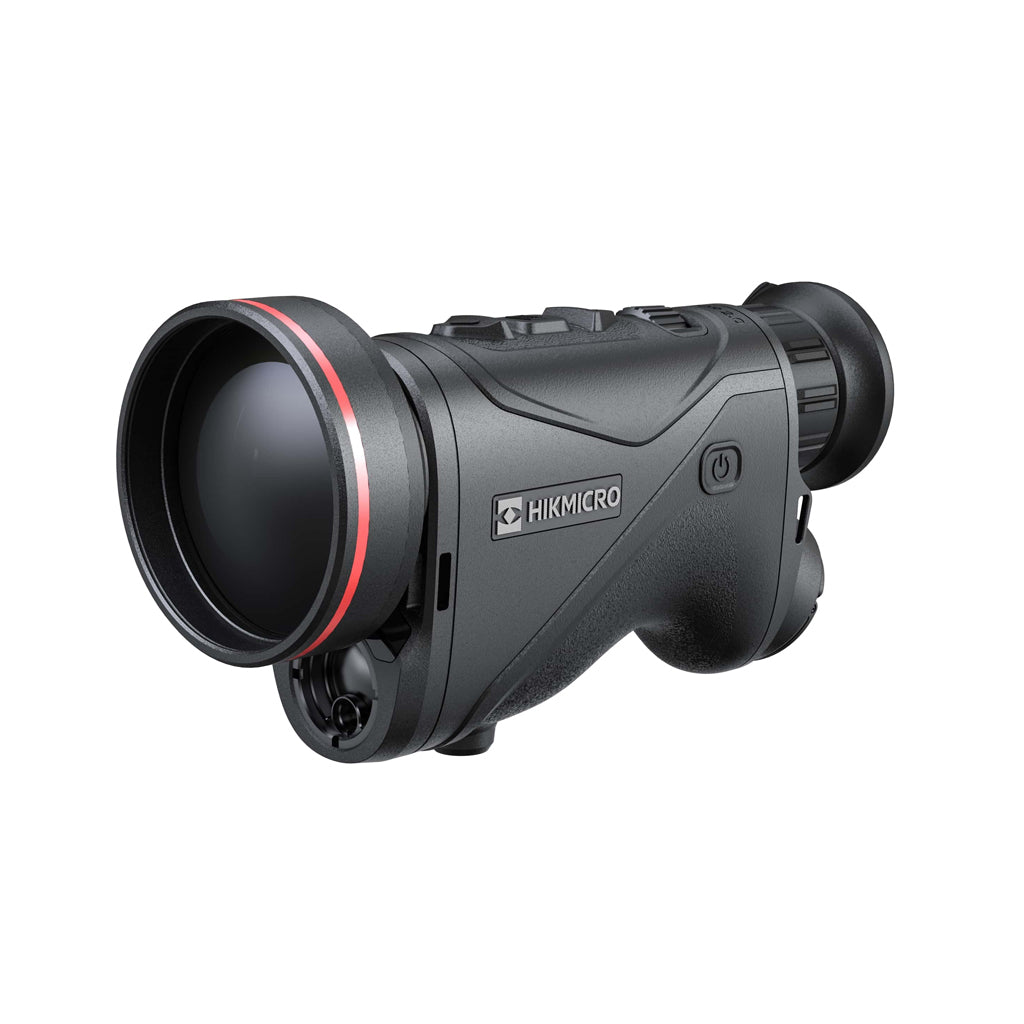

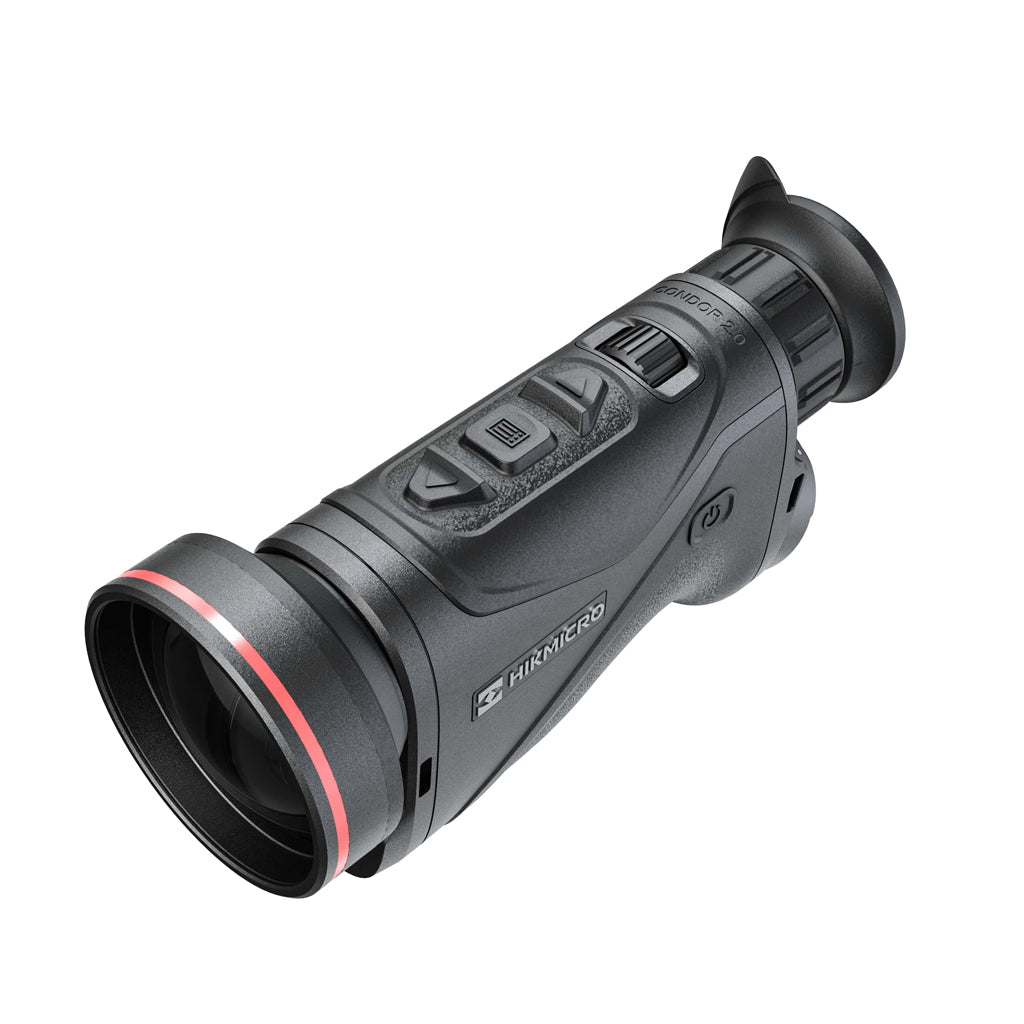

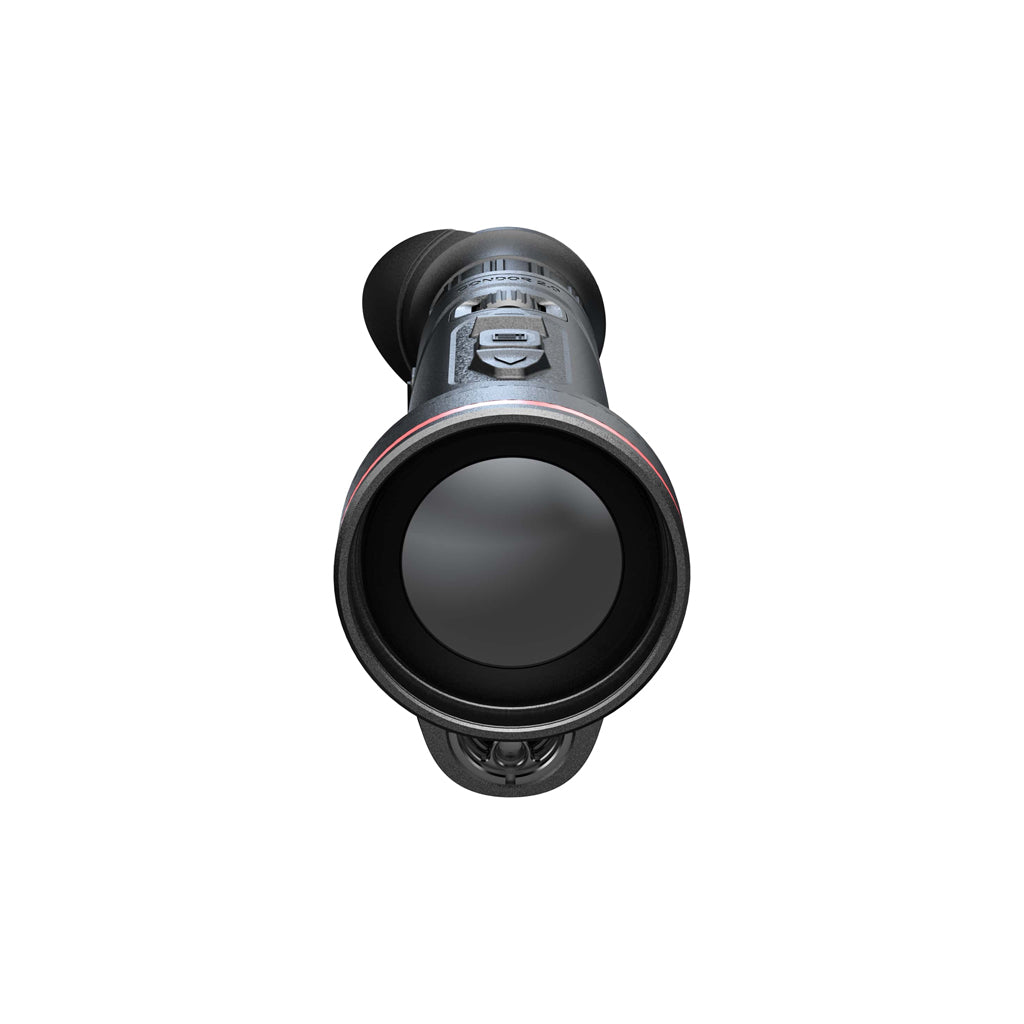

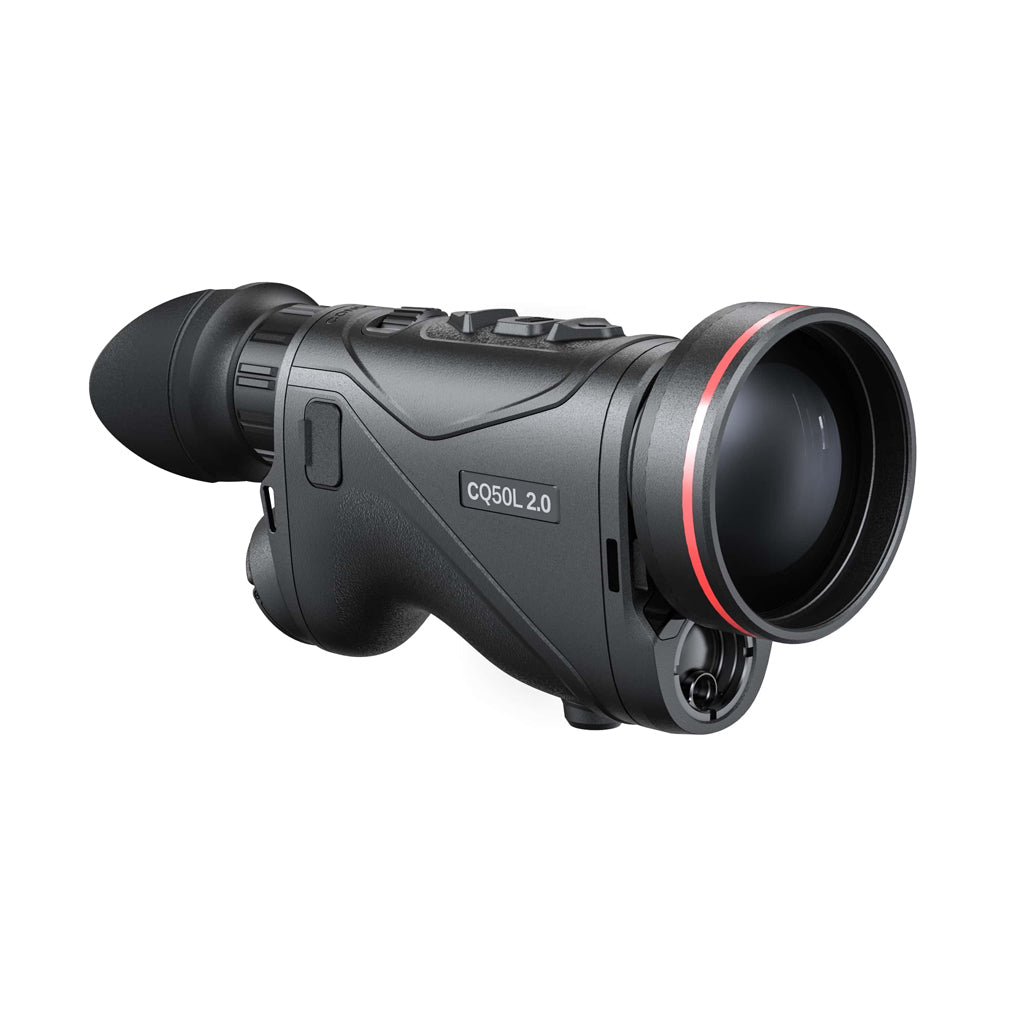

HIKMICRO Condor CQ50L 2.0 LRF 15mK Thermal Imaging Monocular

The HIKMICRO CONDOR CQ50L LRF 2.0 handheld thermal monocular is a cutting-edge device designed to provide exceptional thermal imaging performance. Equipped with a 640 × 512 @12 μm thermal detector and an impressive NETD of less than 15 mK, it ensures precise detail detection even in challenging weather and lighting conditions. Its 0.49-inch 1920 × 1080 OLED display offers vivid visuals, while the innovative shutterless system (HSIS) ensures uninterrupted, smooth operation for an immersive viewing experience.

One of the standout features of the monocular is its integrated laser rangefinder, capable of accurate distance measurements up to 1000 meters. This makes it an essential tool for activities like hunting, birdwatching, wildlife observation, search-and-rescue operations, and marine navigation. Its cylindrical design enhances portability and usability, offering both a premium feel and ergonomic comfort.

The device’s powerful 50 mm F0.9 lens extends its detection range up to an impressive 2600 meters, making it suitable for various professional and recreational applications. With over 6.5 hours of continuous operation, powered by a replaceable and rechargeable 21700 battery, the monocular ensures long-lasting performance in the field.

Weighing just 537 grams, the HIKMICRO CONDOR CQ50L LRF 2.0 combines advanced technology with portability. It is the ideal solution for those seeking a reliable and versatile thermal imaging tool for demanding environments.

Features

• High sensitivity thermal module NETD < 15 mK (@25° C, F#=1.0)

• 640 × 512 resolution with 12 μm sensor

• 50mm, F0.9 lens with detection range up to 2600m

• 1920 × 1080 resolution 0.49-inch OLED display

• HIKMICRO Shutterless Image System (HSIS)

• Intergrated laser rangefinder up to 1000m

Specification

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C), F#=1.0
• Lens (Focal Length): 50 mm, F0.9
• Focus Mode: Rear Focus Wheel
• Detection Range: 2600m
• Min. Focusing Distance: 5.0 m
• Magnification: 2.7 × - 21.6 × (8 ×)
• Field of View (H × V), Degrees / m @100m: 8.7° × 7.0° / 15.2 m × 12.2 m @100 m

• Display: 1920 × 1080, 0.49 inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Image Pro 2.0: Yes
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes
• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in Module (64 GB)
• PIP: Yes
• Hotspot: 2.4/5 G WiFi Waveband
• Hot Track: Yes
• Distance Measurement: Yes
• Local Album: Yes
• Battery Type: Replaceable and rechargeable 21700 battery
• Battery Operating Time: ≥6.5 h (@25°C, WiFi, Zoom Pro, LRF on)
• Type-C Power Supply: 5 V DC, 2 A
• Supports External Power Supply: Support Direct Charging
• Protection Level: IP67
• Dimension: 193 mm × 71.5 mm × 93.3 mm
• Work Temperature: From -30°C to 55°C (-22°F to 131°F); Humidity
• Weight: 537g with Battery
• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max. Measuring Range: 1000m
• Measurement Accuracy: ±1m
• Min. Measuring Range: 10m

Warranty

This comes with a 3 year warranty from HIKMICRO. See the User Manual that comes with the HIKMICRO Condor CQ50L 2.0.
